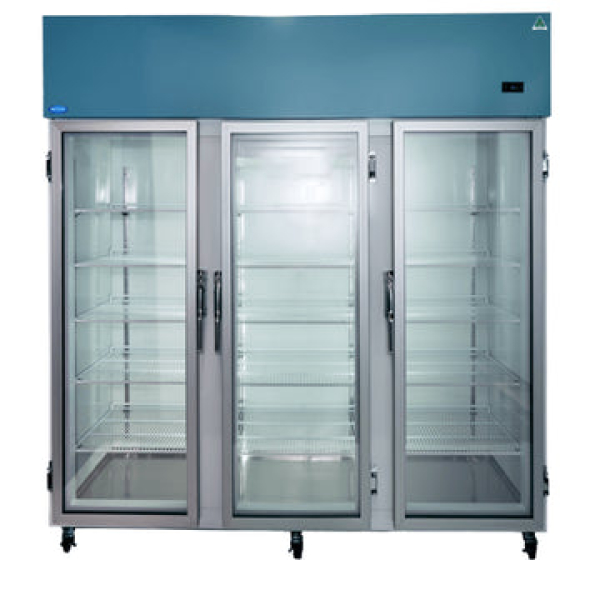

Nuline Spark Safe Laboratory Refrigerator 1614 litres NLMS 1614/3

The Nuline Spark Safe Safe Laboratory Refrigerator is designed and built in Australia specifically for use in laboratories. The interior of the fridge has no source of sparks which makes it suitable for storing flammable products.

Features:

• Static Refrigeration system
• No internal sources of sparks such as lights or thermostats
• Digital controller, with digital display and built in alarms
• Upright laboratory refrigerator
• Top mounted refrigeration system
• Automatic water disposal
• 5 rows of PVC coated shelves
• White colorbond interior and exterior
• Stainless steel interior floor
• Glass door (solid doors are optional)
• Door lock
• Castors
• Cabinet temperature range may be set between 1 to 12 degrees C.
• Climate Class SN (+10°C to +32°C)
• Made in Australia

Available Options

• A range of sizes:
  • One door (700 litres)
  • Two doors (1000 litres)
  • Three doors (1614 litres)
  • Four doors (2170 litres)
• Phasefale Jouletemp Controller – Ethernet controller and monitoring system
• Auto-dialler with battery backup
• Voltage Free Connection – for connection to Building Monitoring Systems
• Temperature data logger
• Port entry for an external temperature probe
• Solid door
• Stainless steel interior
• Stainless steel exterior

Availability:

• These fridges are more made to order. The waiting time is typically 4 to 6 weeks.

Specifications:

• Product Type: Refrigerator
• Cabinet Style: Upright
• Certification: TGA
• Climate Rating: Climate Class SN (+10°C to +32°C)
• Warranty: 5 years

Doors

• Number of Doors: 3
• Door Material: Glass
• Door Hinge: Left fixed/right fixed
• Reversible Door: No

Dimensions

• Volume (litres): 1614
• Width / Depth / Height (mm): 1880 / 700 / 2100
• Gross/Net Weight (kg): 175 Net

Shelves

• Number of Shelves: 5 adjustable
• Shelf Material: Plastic coated steel

Construction

• Cabinet Finish: Powder coated steel
• Interior Material: Powder coated steel with stainless steel floor
• Castors: Not specified
• Spark Free Interior: Not specified

Lighting

• No

Controller Functions

• Controller Type: Digital controller
• Temperature Alarm: Not specified
• Door Open Alarm: Optional extra
• Power Failure Alarm: No
• Battery Back-up for Controller: Optional extra
• Volt-free Contact for Alarm Forwarding: Optional extra
• RS 485 Serial Port for BMS Connectivity: No
• Includes Data Logger: No
• Access Port for External Temp. Probe: Optional extra
• Temperature Settings:
  • Default Set Temperature: 5°C
  • Default Temperature Range: Between +2°C to +8°C

Refrigeration

• Climate Rating: Climate Class SN (+10°C to +32°C)
• Cooling Type: Static
• Defrost Type: Hot gas (automatic)
• Refrigerant: R 134a

Power

• Power Connection: 10A plug & lead
