Specifications
| Knobs | 2 knobs |
|---|---|
| Width (mm) | 1200 |
| Depth (mm) | 930 |
| Height (mm) | 850 |
| Packing Width (mm) | 1240 |
| Packing Depth (mm) | 1030 |
| Packing Height (mm) | 1140 |
| Power | 25KW; 90MJ/h |
| Warranty | 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice |

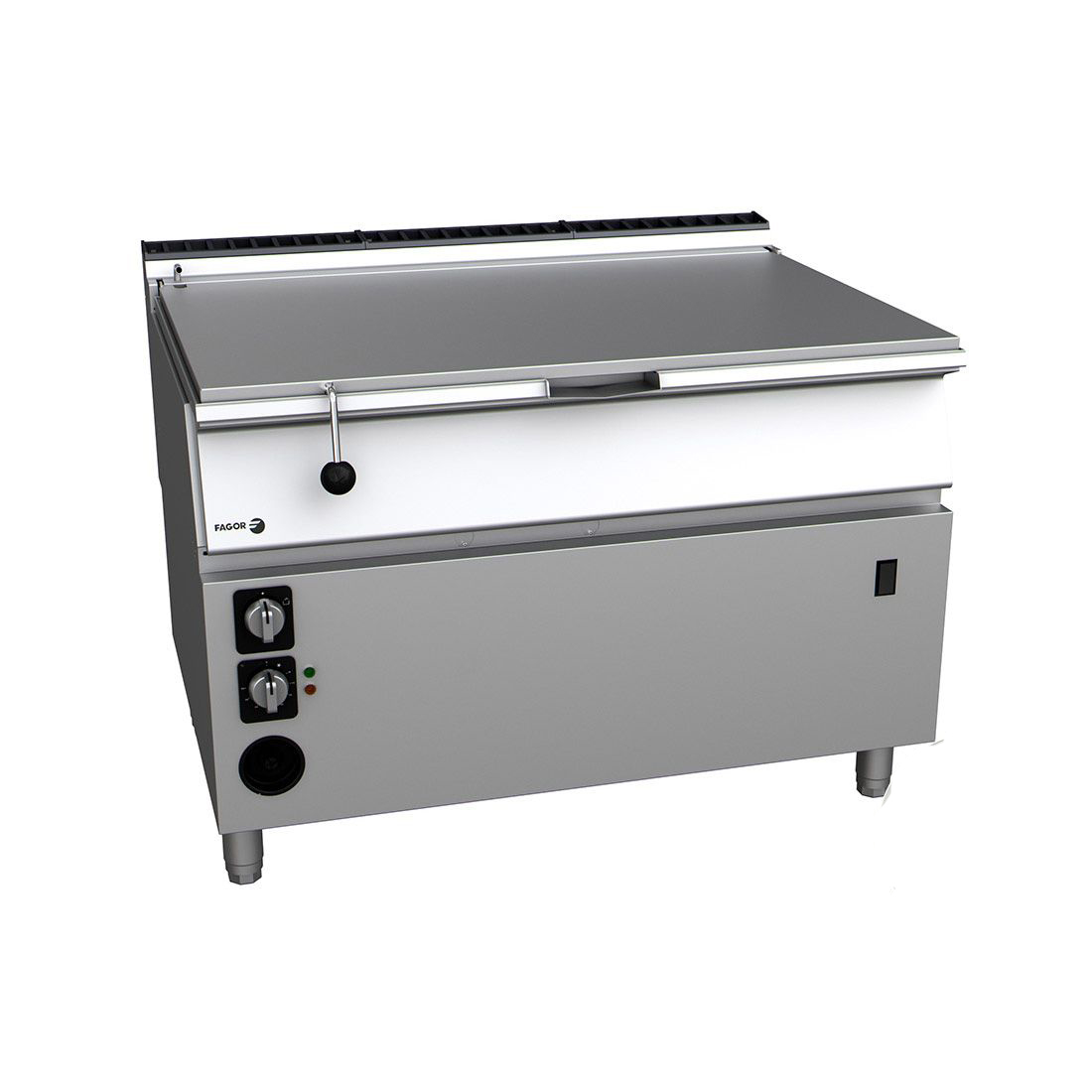

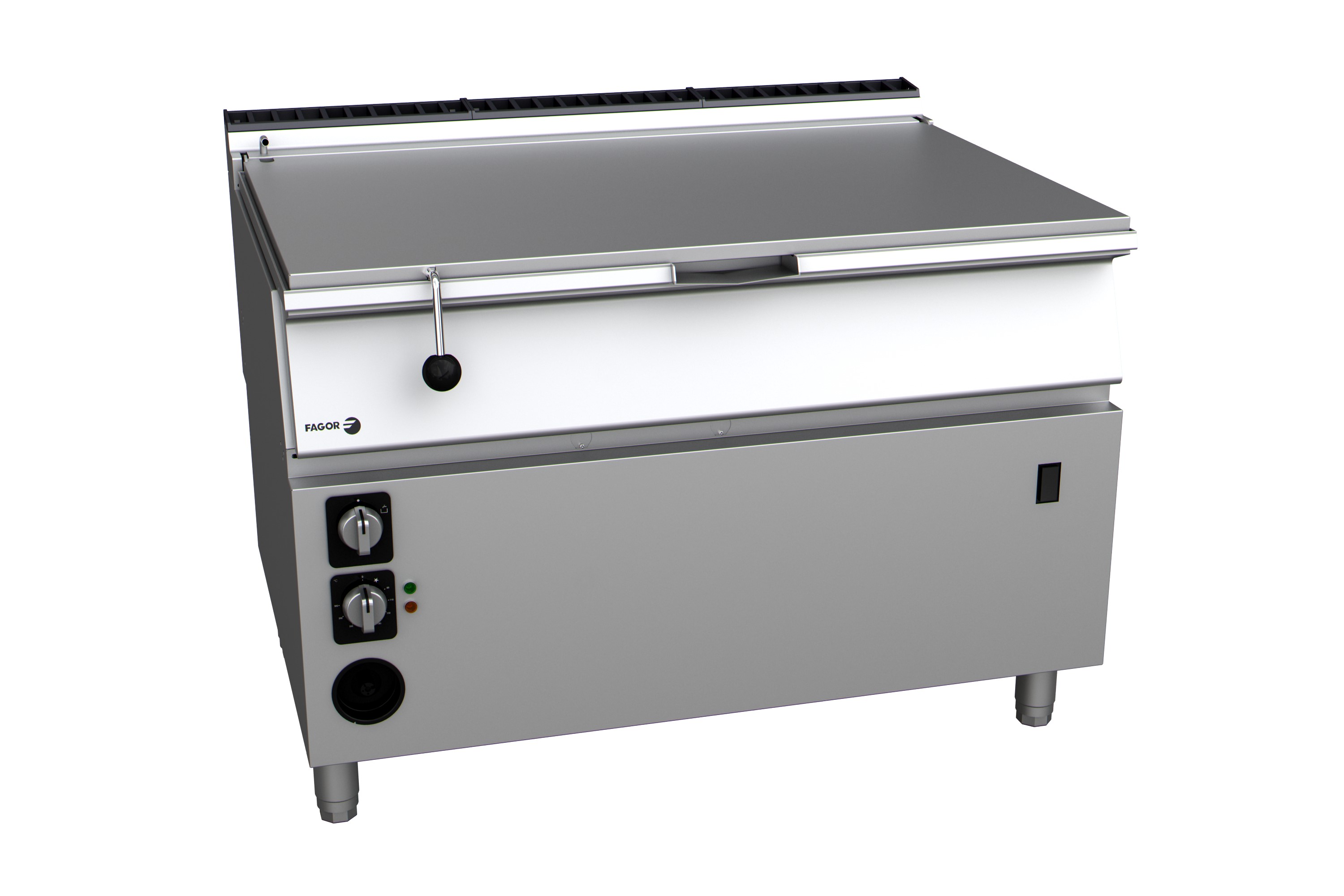

Fagor Kore 900 Series Gas Tilting Bratt Pans - SB-G915IM
SKU SB-G915IM
$31,990.00$27,191.50SALE+gst and delivery
In Stock— final availability confirmed by our team before payment
No payment now. Enter your postcode for a delivered price including GST.
Secure checkout
Description
Fagor Kore 900 Series Gas Tilting Bratt Pans – SB‑G915IM
Designed for demanding commercial kitchens, the Fagor Kore 900 Series gas tilting Bratt pan delivers reliable performance for high‑volume cooking, catering, and hospitality operations.
- Fuel options: Natural gas (NG) or LPG, 120 L capacity.
- Construction: Laser‑cut joints, automatic welding, and polished finishes; screws are hidden for a clean look.
- Elevation system: Motorised or crank‑operated lift raises the pan to vertical for complete emptying.
- Pan material: Available in cast iron or stainless steel.
- Ergonomic design: Rounded corners, seamless edges, and a wide opening simplify loading, unloading, and cleaning.
- Condensation control: Perimeter flange prevents water spill‑over; double‑walled lid with rear drainer redirects condensation back into the well.
- Robust bottom: 8 mm thick for iron pans, 10 mm for stainless steel, ensuring even heat distribution.
- Water fill system: Electric valve with front‑mounted switch; fill pipe located at the rear.
- Lid balance: Spring‑balanced lid with compensation system to avoid heavy drops—adjustable across all modules.
- Safety features: Micro‑break switch stops heating when the pan is raised; high‑temperature enameled cast‑iron flue protector.
- Maintenance access: Front‑panel component access and front‑handle lid.
- IP rating: IPX5 water protection.
- Temperature control: Thermostat regulates pan bottom temperature from 50 °C to 310 °C.
- Heating efficiency: Branched burners mounted in the pan base, combined with the thick pan bottom, provide uniform temperature for consistent cooking results.
Warranty: 2 years parts and labour plus 2 years parts‑only warranty with product registration.
Made in Spain
