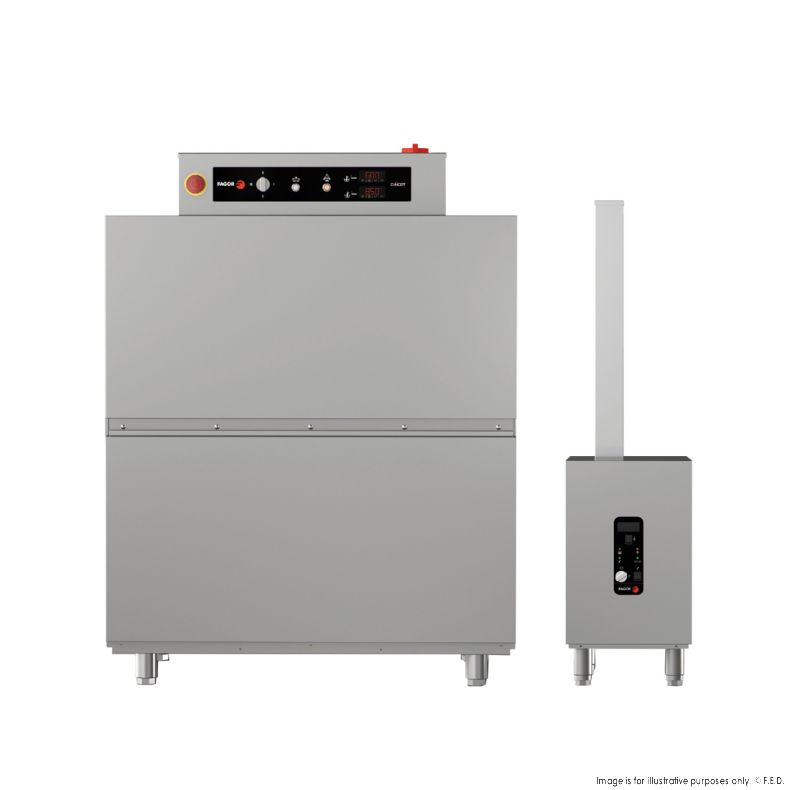

CCO-180DCW Fagor Concept Rack Conveyor Dishwasher 34.9KW

CCO-180DCW Fagor Concept Rack Conveyor Dishwasher 34.9KW

If you desire an easily accessible dishwasher that’s large in capacity and can fit within your large restaurant or store, then the is your answer! Coming in with double effect rinse and pre-rinse, our Concept Rack Conveyor Dishwasher is nothing but perfect for your needs.

Enjoy a high-power washing system with 5 upper and 5 lower washing branches, and a prewash module with 3 upper and 3 lower washing branches. This is a fast selling purchase for any prospective restaurant or café owner who operates a medium to large establishment.

Key Features:

Prewash module with 3 upper and 3 lower washing branches
High-power washing system with 5 upper and 5 lower washing branches
3 washing programs: intensive (90 baskets/hr), medium(135 baskets/hr), high capacity(180 baskets/hr)
Double effect rinse and pre-rinse
Comes with 2 base baskets, 2 baskets for plates, 1 basket for cutlery

Additional information:

Modules Consumption: AS-260 + LP + DA

AS-260 Anti-splash guard supplement

LP Main wash

DA Double effect rinse and pre-rinse

PL3 Cold water prewash

L5 First wash with hot water

Right Hand Side Entrance

HOURLY PRODUCTION

POSITION OF
THE
SWITCH CCO-180 CCO-225 CCO-320
I (*) 90 baskets/hr 125 baskets/hr 127 baskets/hr
II 135 baskets/hr 175 baskets/hr 255 baskets/hr
III 180 baskets/hr 225 baskets/hr 320 baskets/hr
(*) The standard DIN 10534 is met at this speed
Remember that the quality of the wash depends on the speed of the appliance and the type of dirt to be washed.
Therefore, the wash speed should always be appropriate for the dirt on the dishes.
Net Weight (Kg) 259
Width (mm) 1750
Depth (mm) 790
Height (mm) 1560
Packing Width (mm) 955
Packing Depth (mm) 1850
Packing Height (mm) 1950
Power 415V/50Hz ; 34.9kW/3~N
Warranty 2 Years Parts and Labour

CCO-180DCW Fagor Concept Rack Conveyor Dishwasher 34.9KW sold Australian wide
