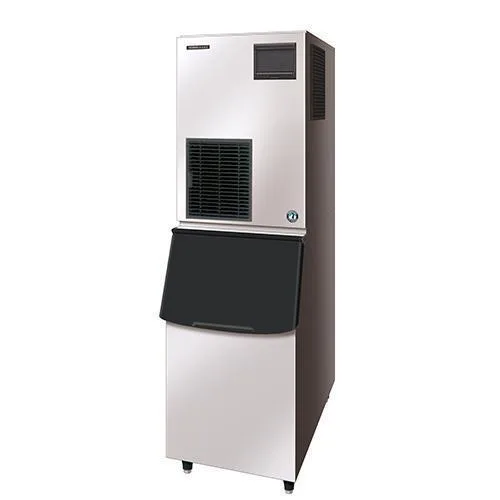

Hoshizaki FM-480AKE Ice Flake Makers

$6,616.80 Excluding GST

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

Hoshizaki FM-480AKE Ice Flake Makers

  • “Freeze Burn” is no longer an issue when displaying fresh fish or produce.
  • Carbon auger bearings have a longer life expectancy than roller bearing, reducing maintenance costs.
  • Automatic flush function, helps keep the ice making system clean.
  • Controller board with Operational Status display assists in troubleshooting.
  • Due to the auger system, water consumption is equal to ice production.
  • Can be converted to nugget ice by changing the extruding head and cutter (parts at an additional cost).
  • 2 year parts & labour on entire unit, 5 year (parts only) on compressor & air cooled condenser coil.


  • Production Capacity per 24hours Approx. 500kg @10°C Air temp; 10°C Water
  • Approx. 425kg @ 21°C Air temp; 15°C water
  • Approx. 325kg @ 32°C Air temp; 21°C water
  • Max Storage Capacity Select bin and kit
  • Dimensions 560mm (W) x 700mm (D) x 780mm (H)
  • Cooling Air
  • Weight Net/Gross (kg) 95 / 102
  • AC Supply Voltage 1 PHASE 230V 50Hz/ 10 AMP Plug
  • Amperage Running: 8.4A Starting: 43A
  • Refrigerant Charge R404A
  • Operating Conditions Ambient Temp.: 5-40°C
  • Water Supply Temp.: 5-35°C
  • Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
  • Voltage Range: Rated Voltage ±10%


Hoshizaki’s Flake ice makers produce flakes consisting of 70%ice and 30% water, used primarily for cooling purposes. It is even used in large facilities such as healthcare, catering, supermarket chains or even cocktail bars.

Weight 102 kg
Dimensions 70 × 56 × 78 cm
