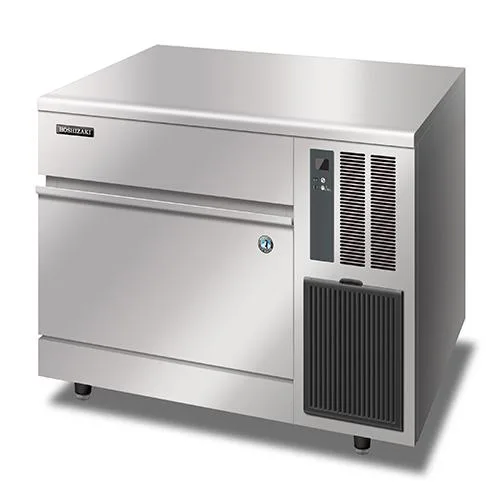

Hoshizaki IM-100CNE-21 Ice Cube Makers
- Unique closed cell water circuit for ultimate contamination protection.
- Durable stainless steel exterior.
- Easily accessible and cleanable air filters reduce costly callouts.
- Exceptionally hard crystal clear cubes that melt slowly.
- Auto rinse and flush cycle.
- 3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor and air cooled condenser coil.
- Production Capacity per 24hours Approx. 90kg @10°C Air temp; 10°C Water
- Approx. 85kg @21°C Air temp; 15°C Water
- Approx. 62kg @32°C Air temp; 21°C Water
- Max Storage Capacity Approx. 38kg ( Bin Control Setting Approx. 23Kg)
- Freeze Cycle Time Approx. 17 Min
- Ice Production Per cycle Approx. 1.15kg/190pcs
- Dimensions 1004mm (W) x 600mm (D) x 800mm (H)
- (Units include adjustable legs 90-125mm)
- Cooling Air
- Weight Net/Gross (kg) 77 / 88
- AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10 AMP Plug
- Amperage Running: 4.1A Rated: 4.1A Starting: 19A
- Refrigerant Charge R134a / 280g
- Operating Conditions Ambient Temp.: 1-40°C
- Water Supply Temp.: 5-35°C
- Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
- Voltage Range: Rated Voltage ±6%
HIGHEST QUALITY ICE
This ice maker is part of a unique range of cubers; designed with hygiene as a priority. Each ice cycle is made with fresh water, ensuring only the highest quality of ice. The cubes are easily recognized by its precise shape, clarity and slow dilution. This is particularly important for ice that is used in premium beverages like cocktails, as it protects the integrity and flavor of the drink. This model is configured with our storage bins, and can be stacked to multiply the ice production.
