Description

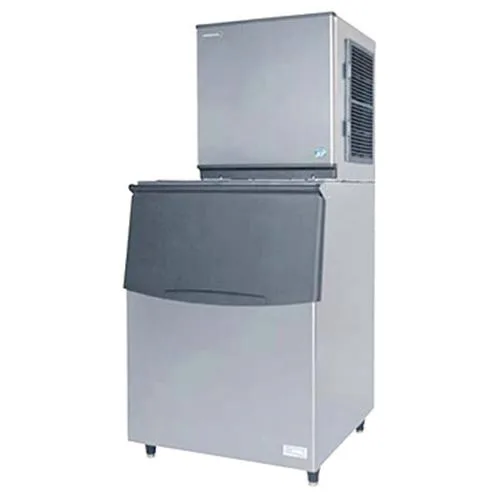

Hoshizaki KMD-270AB (SS) Cresent Ice Maker Self Contained

• Individual premium crescent cube with no ice bridging.
• Exceptionally hard crystal clear cubes that melt slowly.
• Durable stainless steel exterior.
• Slide in air filter for easy cleaning – maintaining performance efficiency.
• Patented double sided stainless steel evaporator fro all water conditions – produces more ice in less cycles.
• Audible alarms.
• 3 year parts & labour on entire unit, 5 year parts & labour on the evaporator,5 year (parts only) on compressor and air cooled condenser coil.
• Production Capacity per 24hours Approx. 275kg @10°C Air temp; 10°C Water
• Approx. 255kg @21°C Air temp; 15°C Water
• Approx. 221kg @32°C Air temp; 21°C Water
• Max Storage Capacity Select Bin and Kit
• Freeze Cycle Time Approx. 26.8 Min
• Ice Production Per cycle Approx. 5.3kg/572pcs
• Dimensions 560mm (W) x 625mm (D) x 610mm (H)
• (Not incl.Bin Sw)
• Cooling Air
• Weight Net/Gross (kg) 57 / 73
• AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10 Amp Plug
• Amperage Running: 4.9A Starting: 24A
• Refrigerant Charge R404A / 780g
• Operating Conditions Ambient Temp.: 7-40°C
• Water Supply Temp.: 5-35°C
• Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
• Voltage Range: 198-254V

LEADING THE FUTURE OF ICE PRODUCTION

The Hoshizaki KMD-270AB ice machine produces up to 221kg of clear hard crescent ice a day.It includes a double-sided stainless steel evaporator, which requires fewer cycles to produce a full bin of ice, thereby reducing energy consumption. The CycleSaver® design allows our crescent ice makers to produce more ice, using less energy, while cycling 1/2 as many times as the competition.
