Specifications
| Connection Type | NG |
|---|---|
| Knobs | 1 knob |
| Net Weight (Kg) | 79 |
| Width (mm) | 425 |
| Depth (mm) | 900 |
| Height (mm) | 900 |
| Packing Width (mm) | 465 |
| Packing Depth (mm) | 995 |
| Packing Height (mm) | 920 |
| Power | 87.86 mj./h |
| Warranty | 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice |
Downloads
Fagor 900 series NG deep fat fryer FG9-05
SKU FG9-05
No payment now. Enter your postcode for a delivered price including GST.
Description

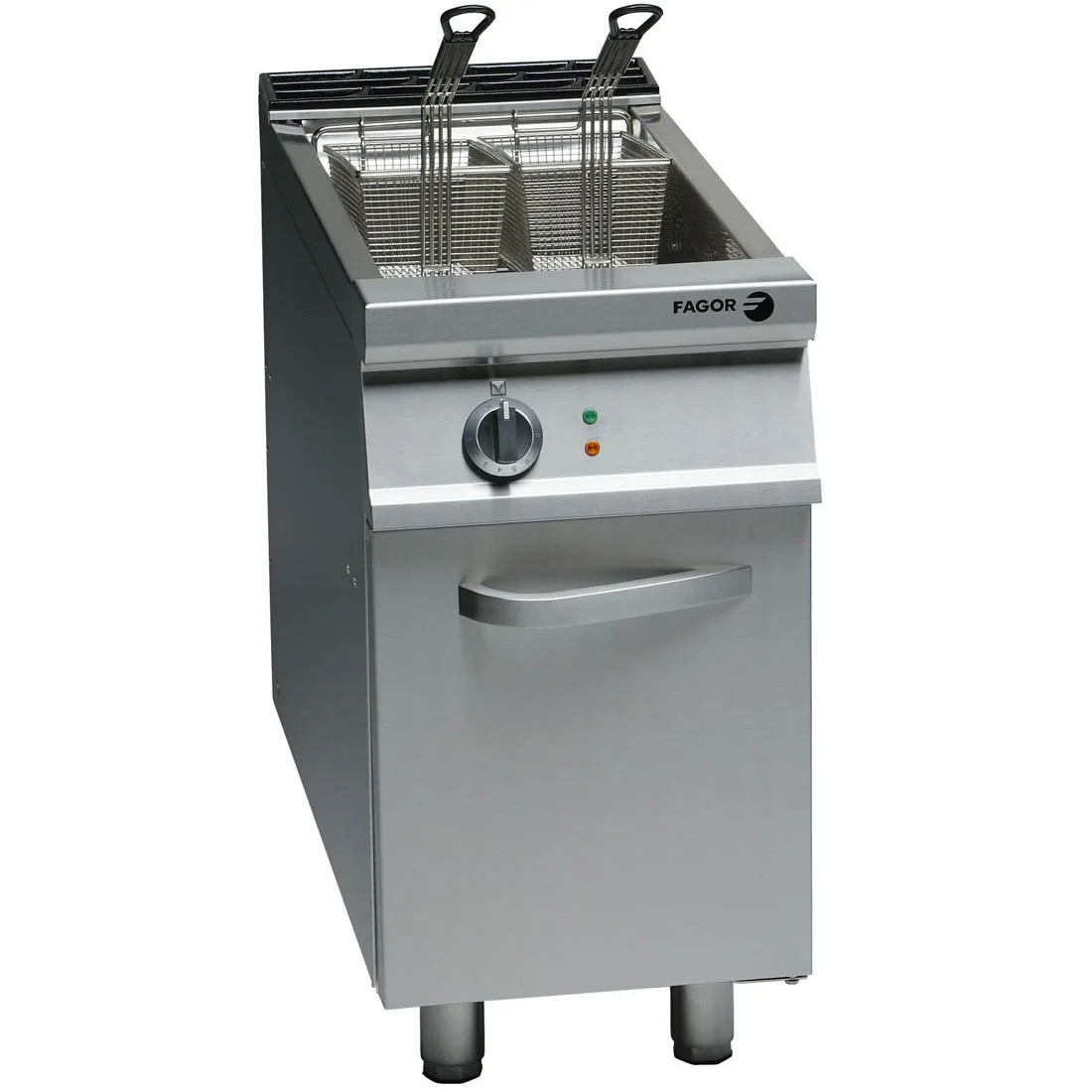

Fagor 900 series NG deep fat fryer with cast iron burners and temp control FG9-05
The fryers in the 900 Series have built-in thermostatic temperature control for temperatures ranging from 60 ºC to 195 ºC. They also include a vat drainage tap to make it easier to clean the machine. Each vat has 2 small baskets (P), measuring 315 x 160 x 120 mm, or one large basket (G), measuring 315 x 330 x 120 mm, to suit the needs of each customer and each situation.
• Made of stainless steel
• Capacity: one 20 litre oil/well.
• Tank equipment: 2 small baskets 315x160x120 mm.
• Cast iron burners.
• Thermostat temperature control: 60 ºC to 195 ºC.
• Automatic burner ignition by means of an electromagnetic valve, with
• pilot light and thermocouple.
• Safety thermostat.
• Drainage tap.
• Night lids included.
• Power: 24kW or 87.86 mj./h
Dimensions: 425 x 900 x 850* mm. *Supplied on height adjustable legs; total height adjusts from 850mm to 900mm Electrical supply: 230v-1+N UNIT NOT SUPPLIED WITH POWER CORD AND PLUG. THESE MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN.
Made in Spain
